Cat Cams

Stage 3 Camshafts

Hot Street

1NZ-FE

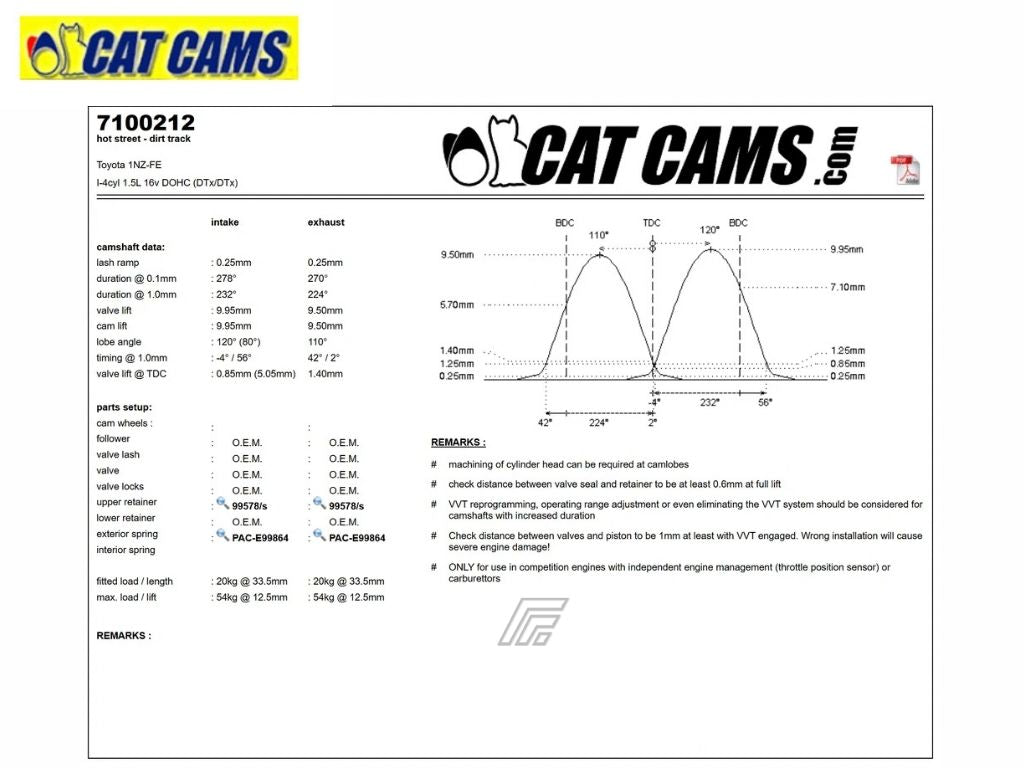

Specs:

Primary Inlet Duration at 0.1mm lift 278 degrees, 9.95mm lift

Primary Exhaust Duration at 0.1mm lift 270 degrees, 9.50mm lift

Note: Valve springs and retianers need to be upgraded

Note: Machining of cylinder head can be required at camlobes

Note: Check distance between valve seal and retainer to be at least 0.6mm at full lift

Note: Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!

Note: Aftermarket ECU required.

Note: Price is for 1 x pair of camshafts.

Note: Valve clearances will need to be checked and adjusted when fitting.

Fitment:

Yaris T Sport 1NZ-FE

Extra bhp, torque and driveability – that’s the Cat Cams performance difference! Whether it’s fast road, rally, rallycross, circuit or drag racing, if you’re looking for improved engine performance then Cat Cams has plenty to offer.

Computer simulation and CNC manufacturing techniques allow Cat Cams to pursue a unique design philosophy based on shorter durations and higher valve lifts. Compared to competitors this means Cat’s profiles offer better cylinder filling at lower engine speeds, producing higher levels of torque and tractability allied to improved top end power.

Unlike its competitors Cat Cams only grinds ‘new’ cams, either from chilled castings or virgin steel billets. So if it’s street, strip or stage rest assured you’re getting a performance cam quite unlike any other, proven by Cat Cam’s successes in the European Touring Cars (including BTCC class winners), the Le Mans 24 hours and Moto GP.
