Cat Cams

Stage 6 Camshafts

Full Race

After Market ECU

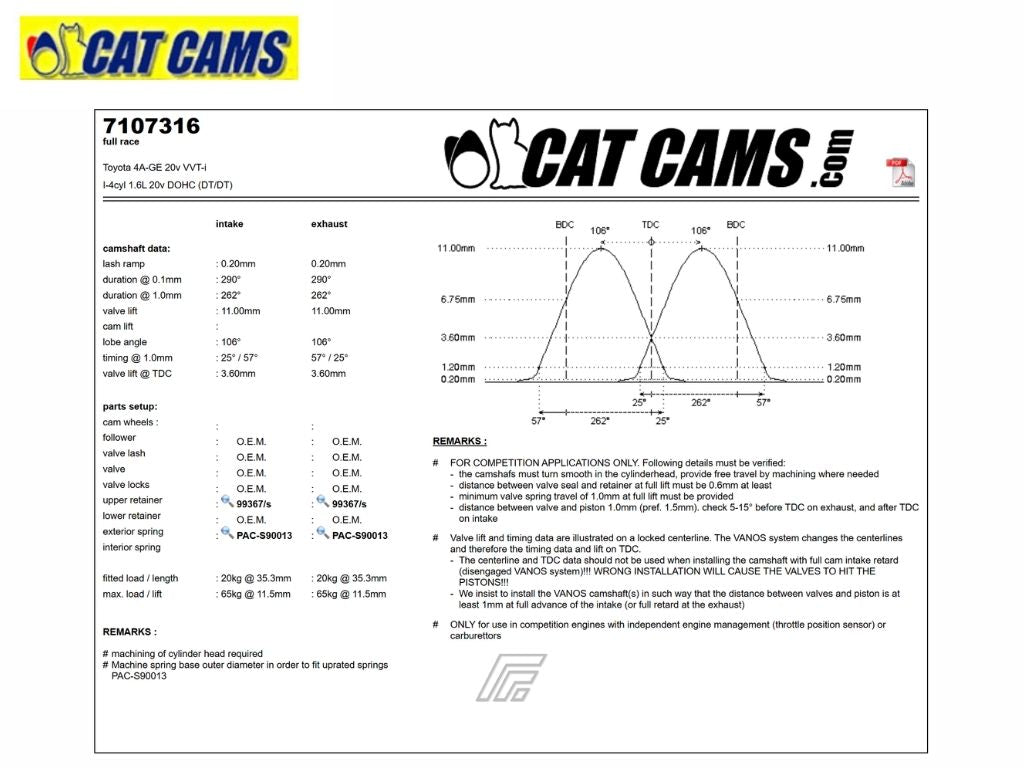

Specs:

Inlet Duration at 0.1mm lift 290 degrees, 11.00mm lift

Exhaust Duration at 0.1mm lift 290 degrees, 11.00mm lift

Note: Requires after market valve springs & retainers.

Note:  Following details must be verified:-the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed-distance between valve seal and retainer at full lift must be 0.6mm at least-minimum valve spring travel of 1.0mm at full lift must be provided-distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake

Note: Valve lift and timing data are illustrated on a locked centerline. The VANOS system changes the centerlines and therefore the timing data and lift on TDC.-The centerline and TDC data should not be used when installing the camshaft with full cam intake retard (disengaged VANOS system)!!! WRONG INSTALLATION WILL CAUSE THE VALVES TO HIT THE PISTONS!!!-We insist to install the VANOS camshaft(s) in such way that the distance between valves and piston is at least 1mm at full advance of the intake (or full retard at the exhaust)

Note: Price is for 1 x pair of camshafts.

Note: Valve clearances will need to be checked and adjusted when fitting.

Note: Aftermarket ECU required.

Fitment:

Corolla AE101

Corolla AE111

Extra bhp, torque and driveability – that’s the Cat Cams performance difference!

Whether it’s fast road, rally, rallycross, circuit or drag racing, if you’re looking for improved engine performance then Cat Cams has plenty to offer.
Computer simulation and CNC manufacturing techniques allow Cat Cams to pursue a unique design philosophy based on shorter durations and higher valve lifts. Compared to competitors this means Cat’s profiles offer better cylinder filling at lower engine speeds, producing higher levels of torque and tractability allied to improved top end power.

Unlike its competitors Cat Cams only grinds ‘new’ cams, either from chilled castings or virgin steel billets. So if it’s street, strip or stage rest assured you’re getting a performance cam quite unlike any other, proven by Cat Cam’s successes in the European Touring Cars (including BTCC class winners), the Le Mans 24 hours and Moto GP.
